Akshar Precast designs, manufactures and installs RCC precast compound walls, fencing posts and textured panels - engineered for strength, finished for style.
Akshar Precast is a Haryana-based manufacturer of RCC precast compound wall systems. Every panel and post is cast under controlled factory conditions, cured to full strength, then transported and erected on your plot - replacing weeks of brick-and-mortar work with a boundary wall that goes up in days.
From farmhouse plots to industrial yards - one factory, six finishes, a single point of contact from casting to installation.
Interlocking RCC panels slotted between columns for a fast, gap-free boundary.
Pre-slotted vibrated columns cast to size, ready to plant and plumb on site.

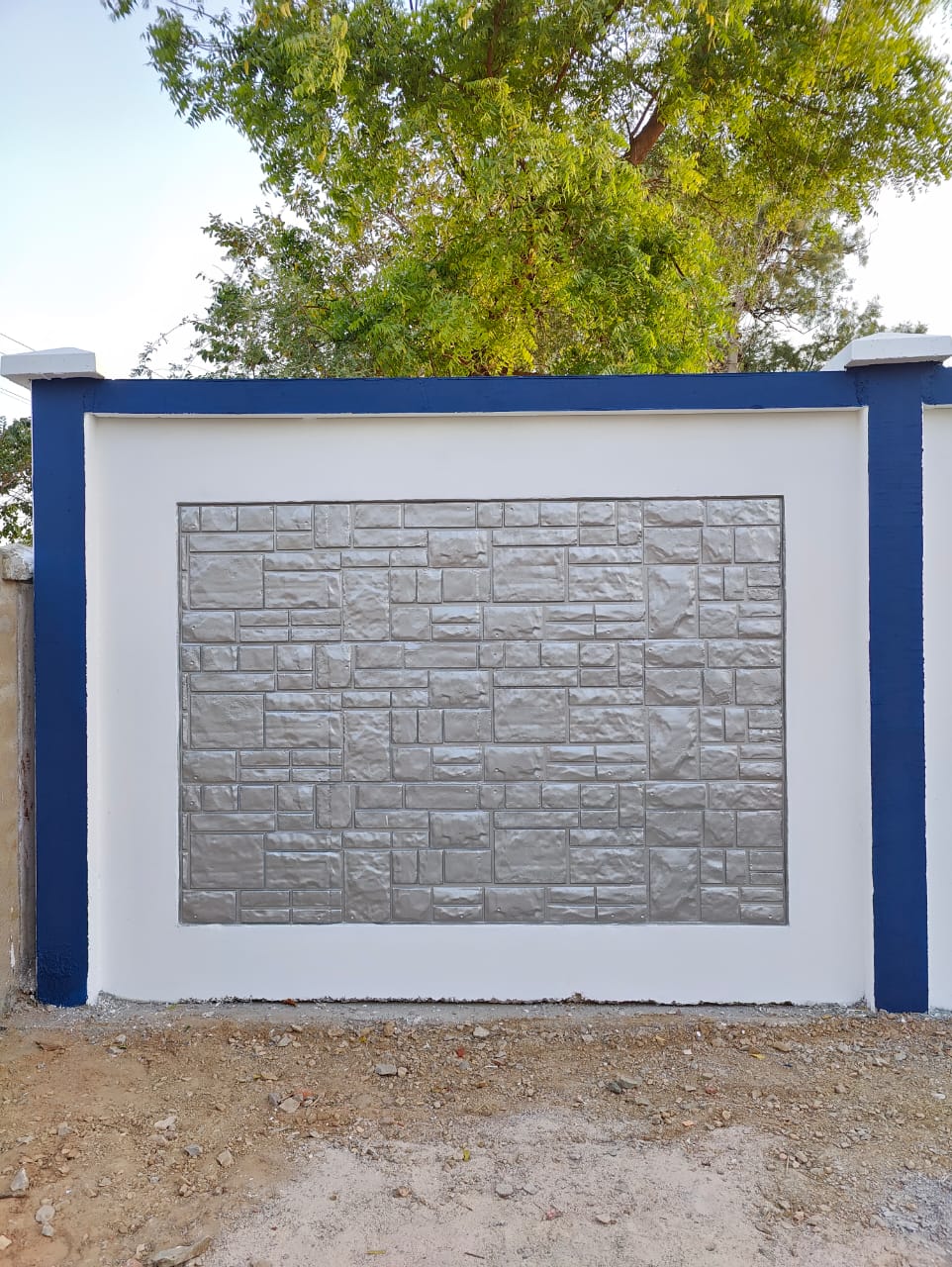

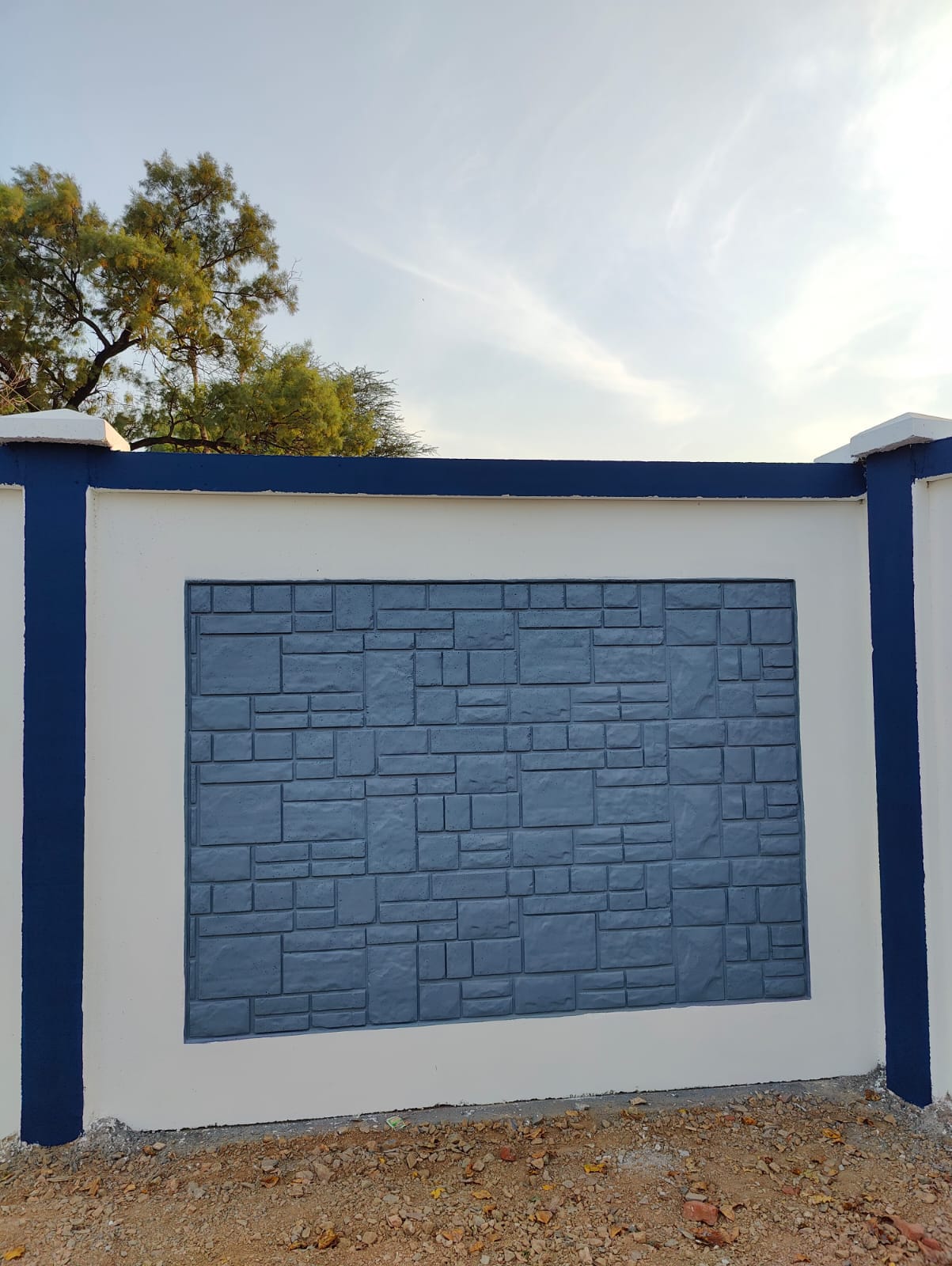

Stone, brick and ashlar mould finishes cast directly into the panel face.

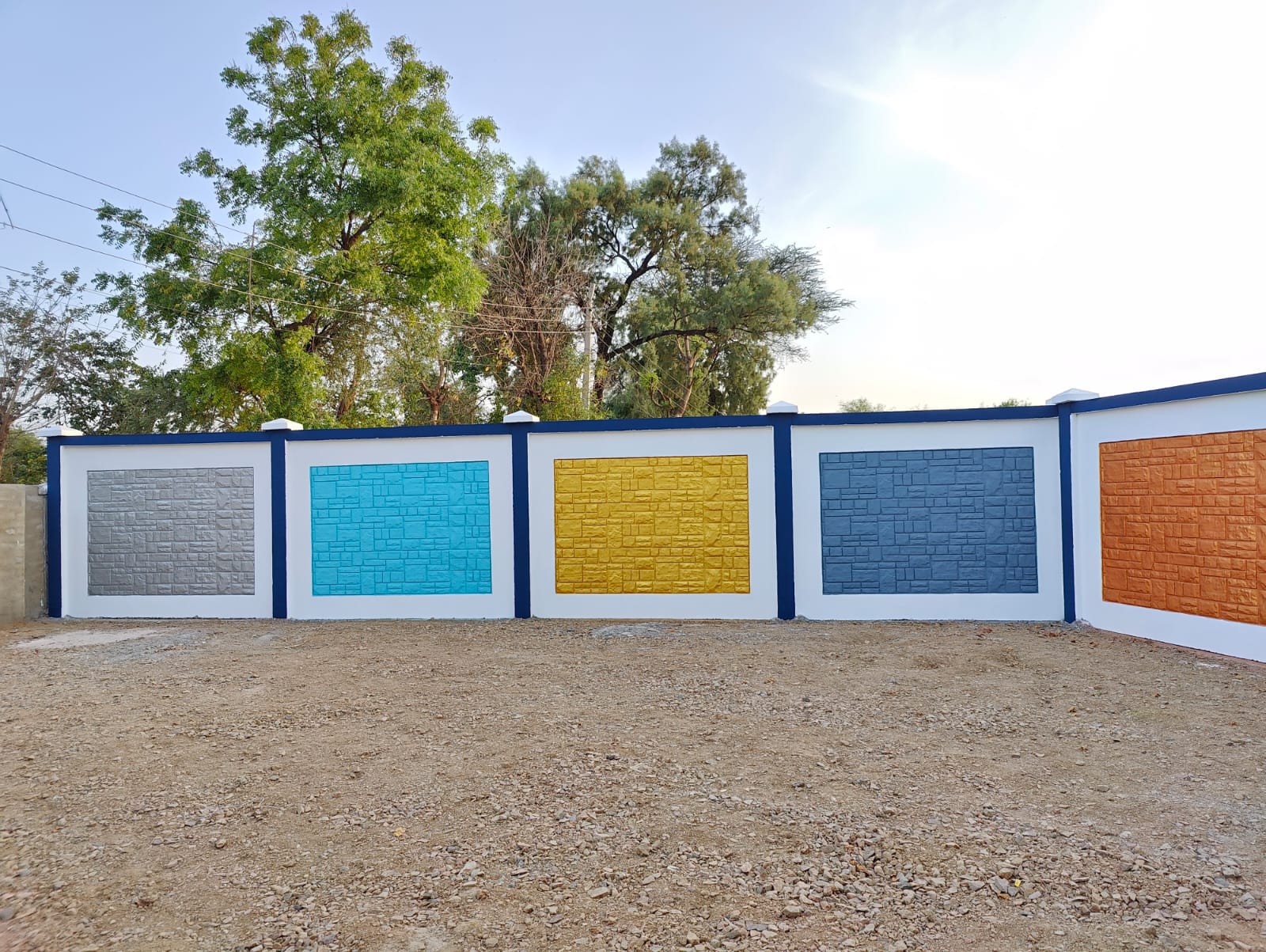

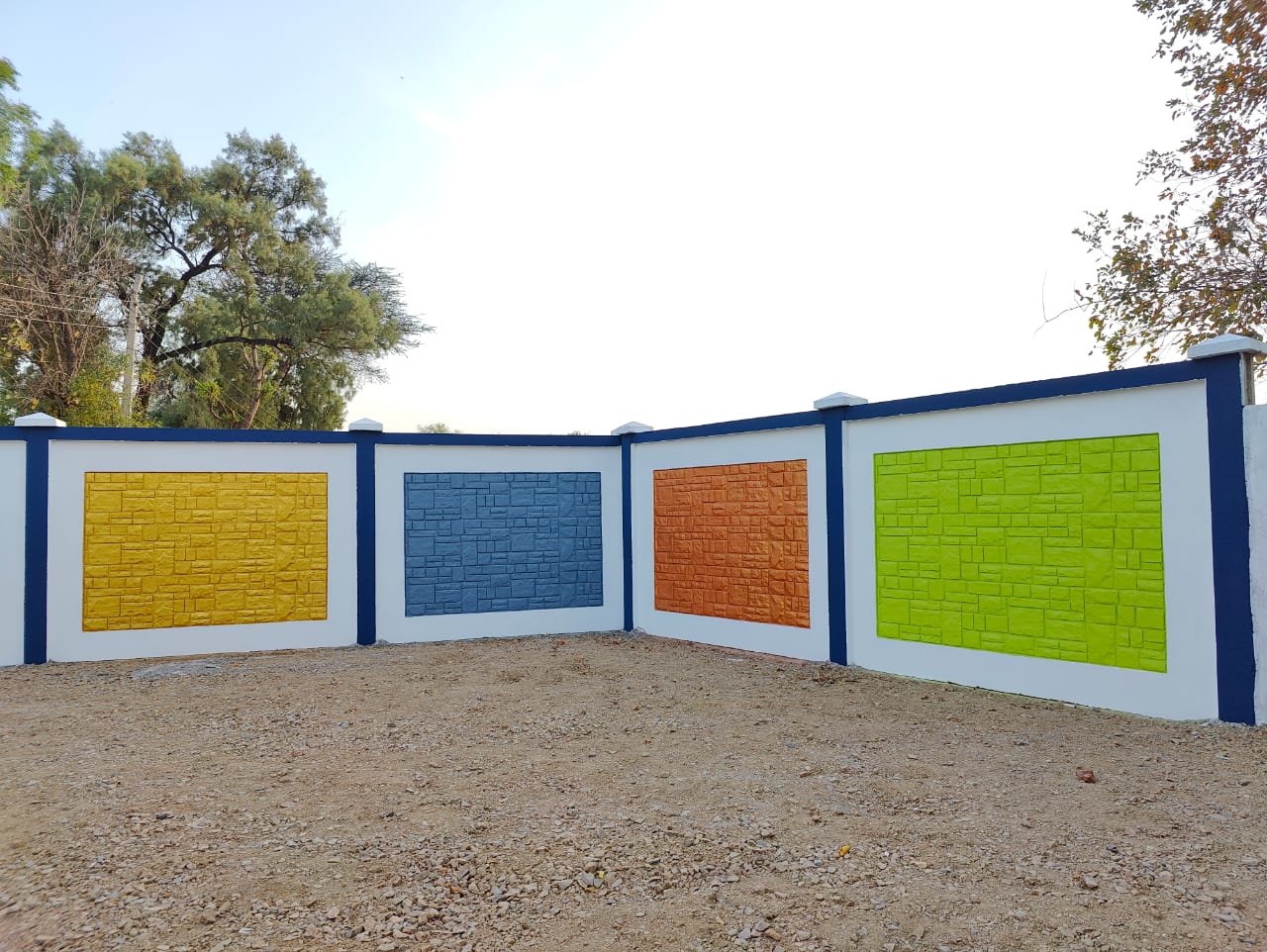

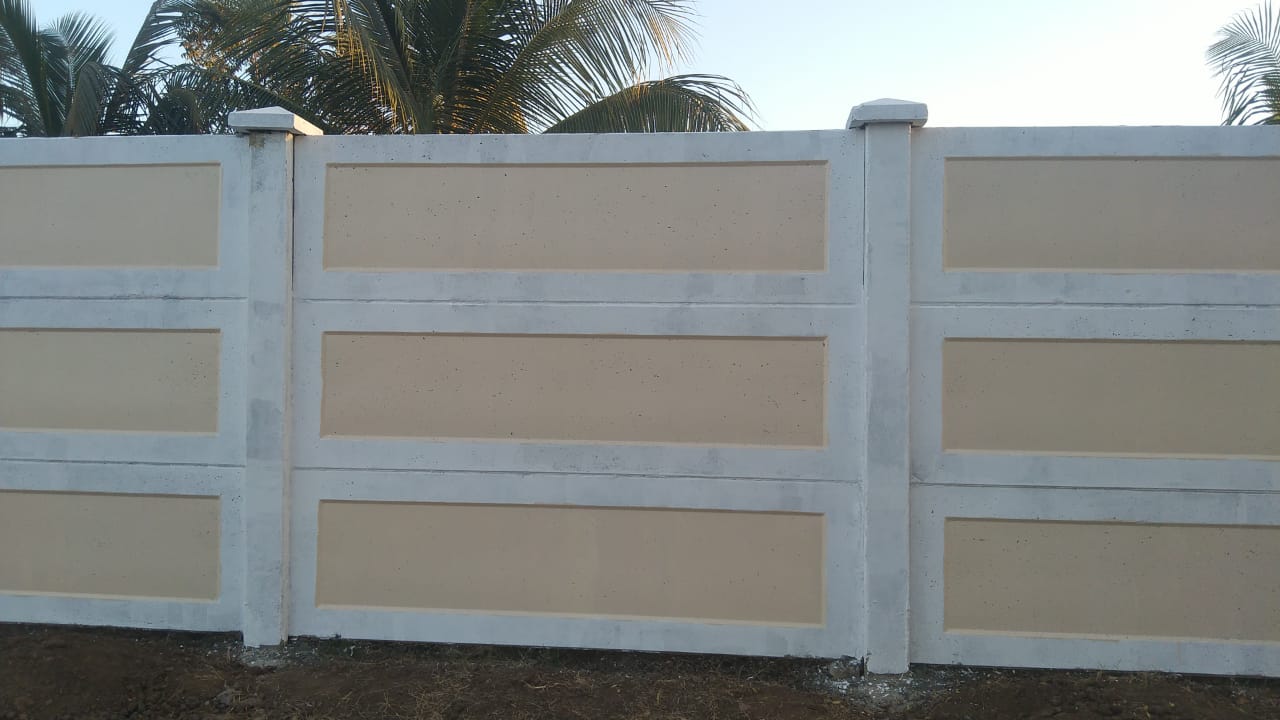

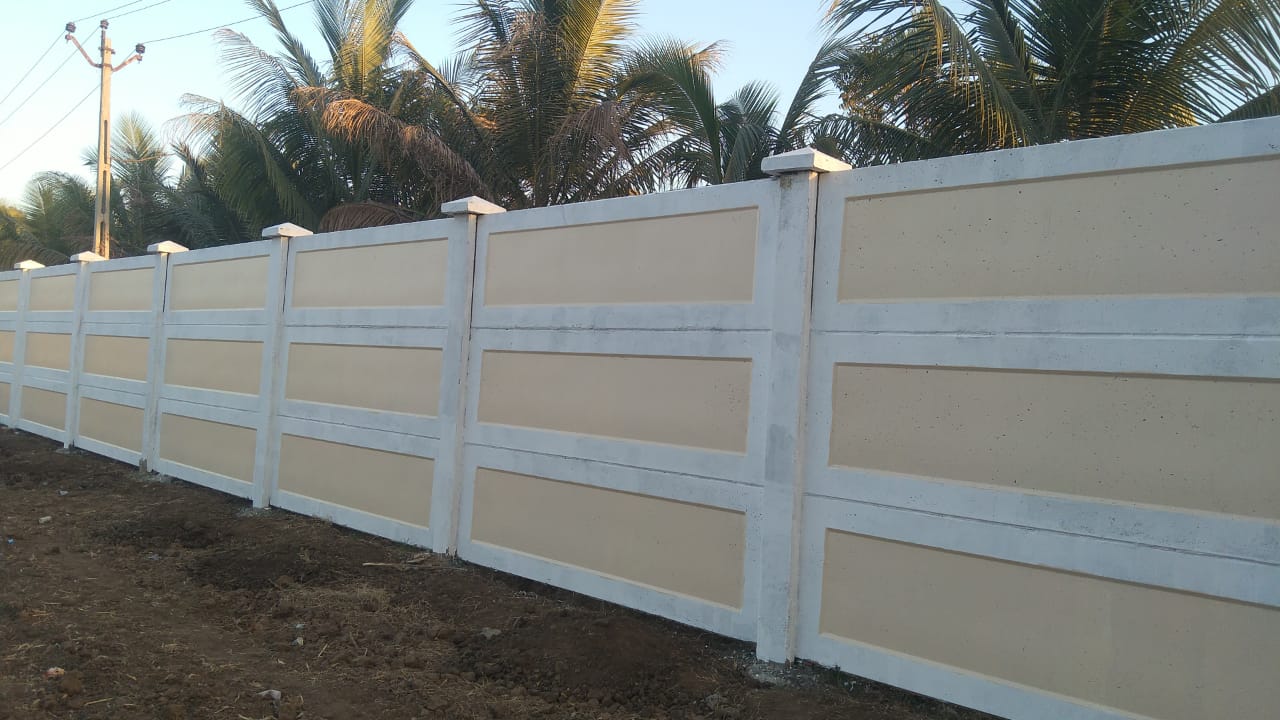

Factory-applied colour finishes in yellow, navy, terracotta, green, cyan and grey.

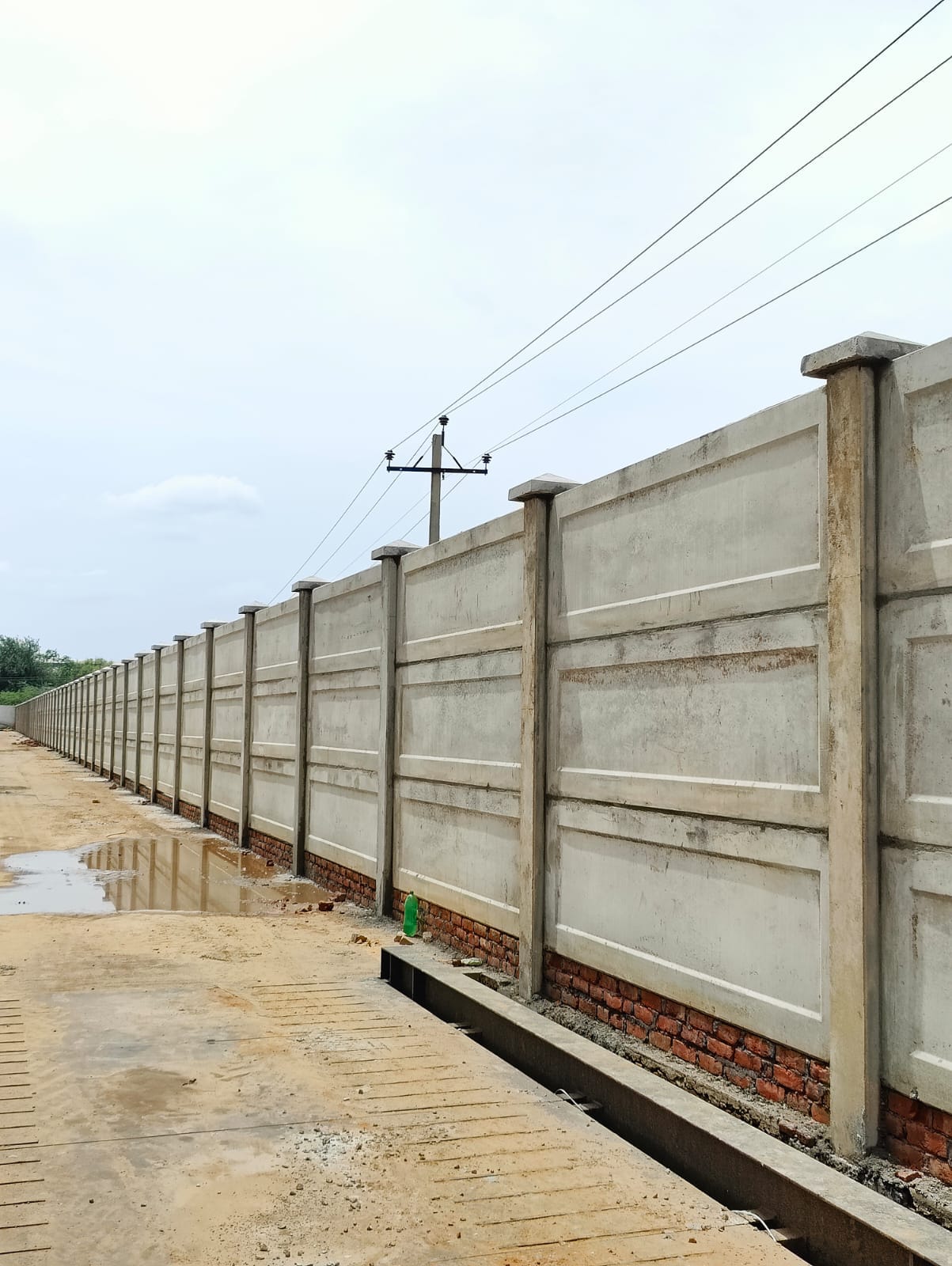

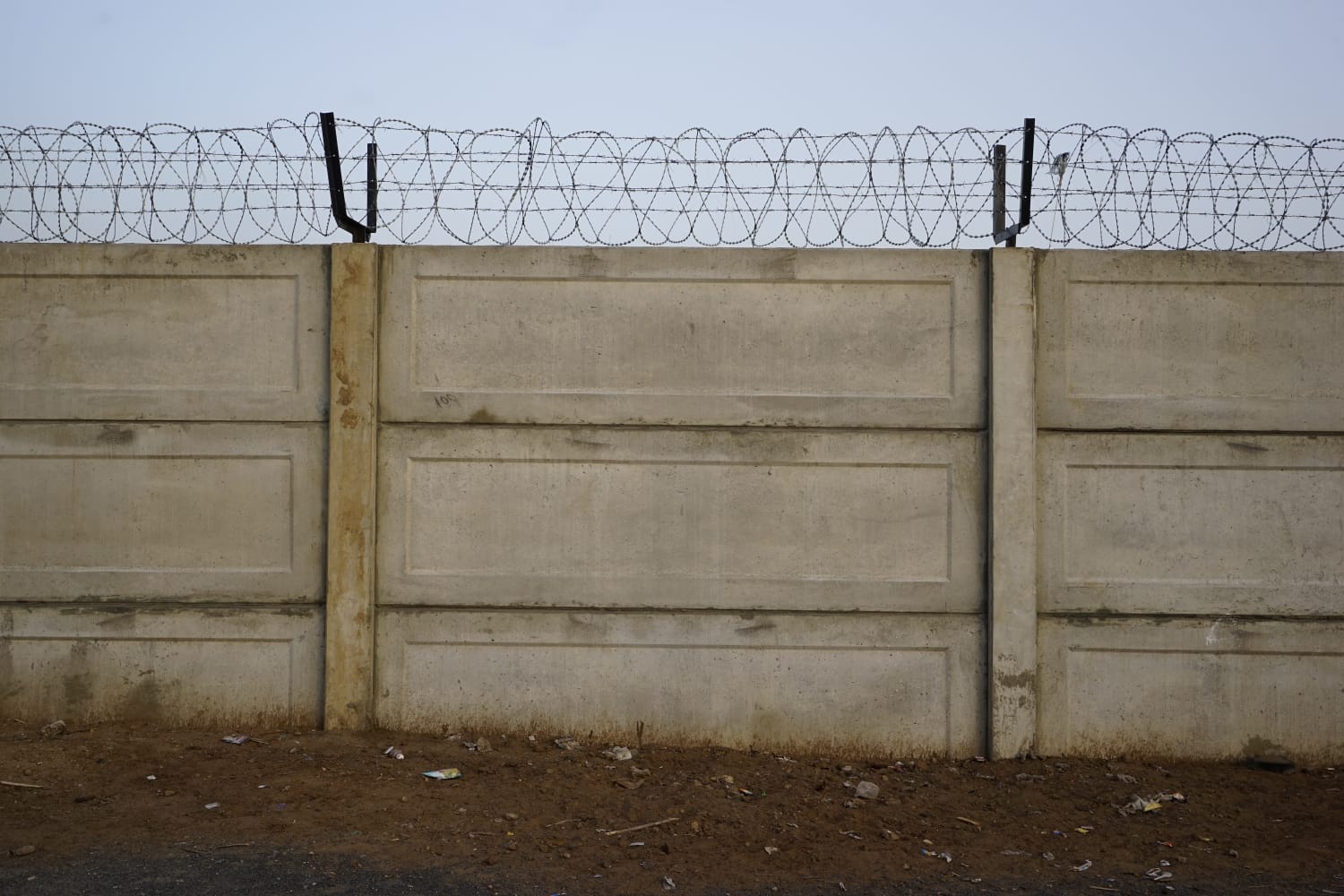

Barbed and razor wire mounting brackets fixed to the top course for perimeter security.
Our own crew handles transport, foundation and erection - start to finish.
Every panel and post leaves our yard to the same tested dimensions - vibrated, pre-stressed and cured before it ever reaches your site.
Cast per set with a pre-stressing system for higher tensile strength and long-term crack resistance.

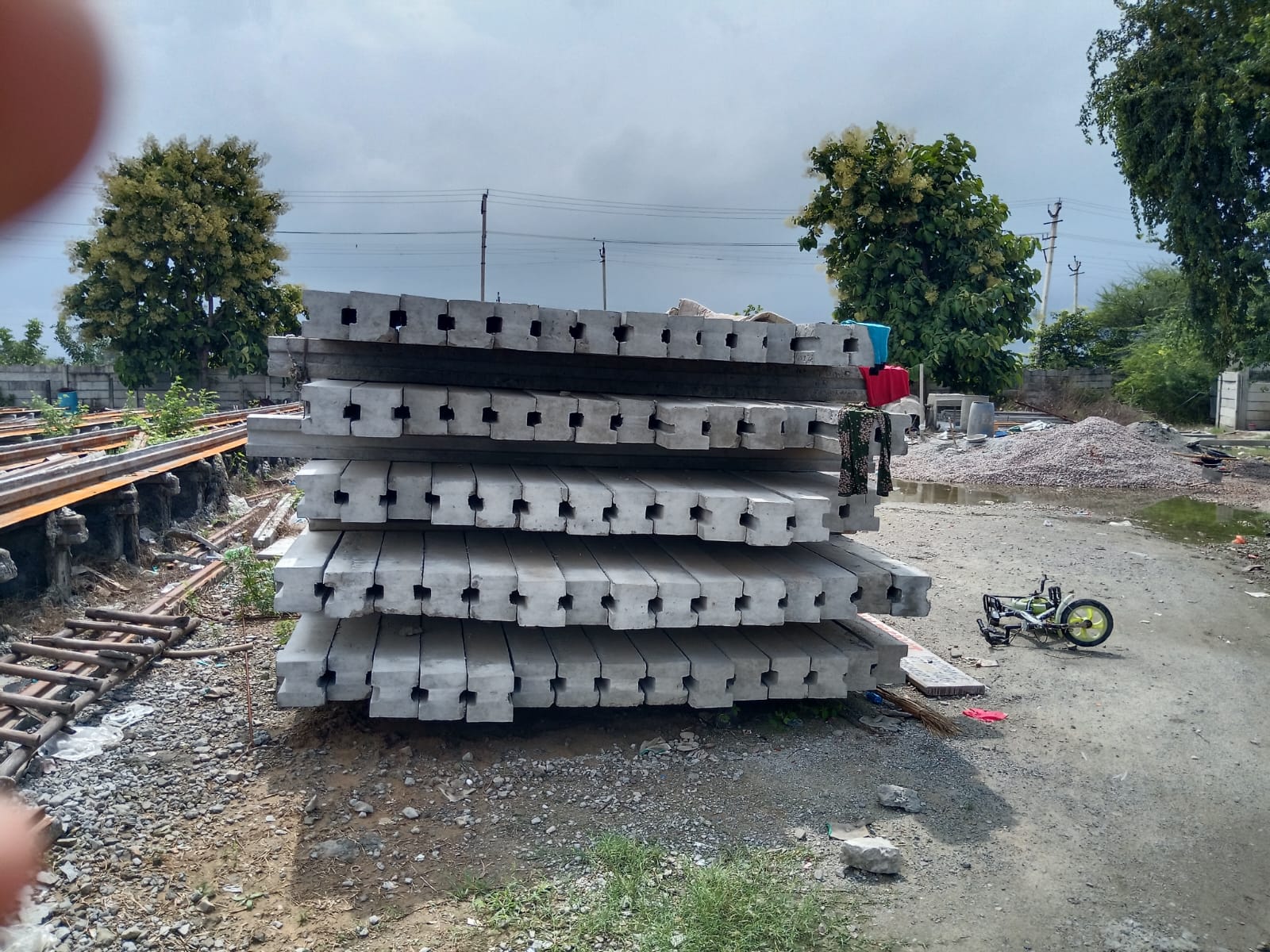

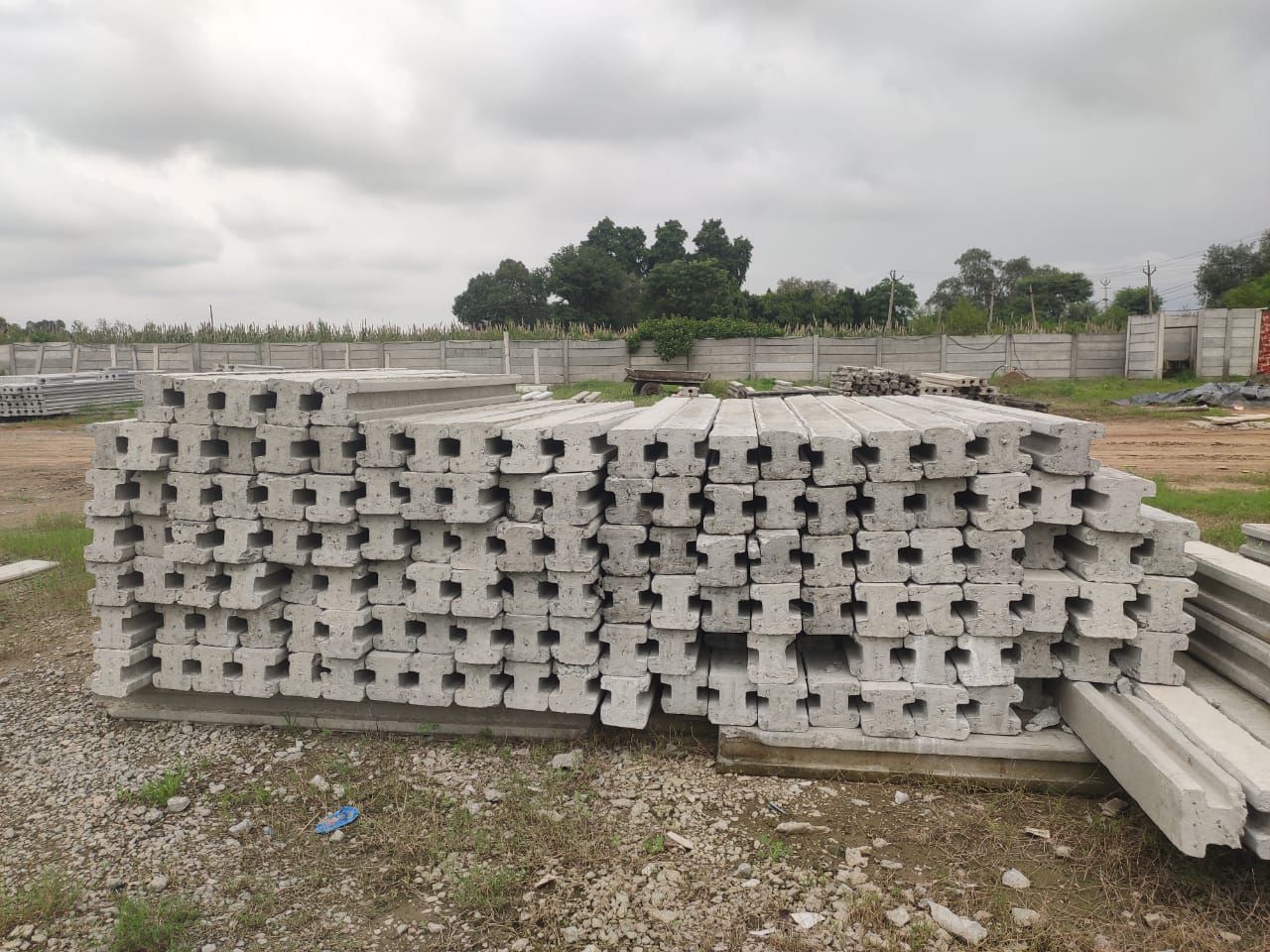

Pre-stressed I-section posts slot each wall panel into place and hold the line plumb.
Precast is gaining ground over brick-and-mortar for one simple reason: it is faster to build, tested to a consistent strength, and cheaper to maintain over the life of the wall.
| Property | RCC Boundary Wall | Traditional Brick Wall | Remarks |
|---|---|---|---|
| Construction Time (100 metre wall) |
Constructed in just 3 days | At least 7 days to build, plus 7 more days of water curing | Saves precious construction time |
| Strength | High-tensile wire at every 75mm; 6mm & 12mm TMT at 200mm centre-to-centre | Weakest point is the 150mm brick masonry, easily broken with ordinary hand tools | Better security for the campus |
| Long Lasting | Highly durable - superior-quality concrete and steel | Weak by nature - depends on brick/sand quality, curing time and workmanship | Requires almost no maintenance |
| Re-stability | Can be relocated from one place to another without losing strength or quality | Gets broken easily during a move, from destruction to reconstruction - up to 50% material lost | RCC walls stabilise quickly, as if newly built |
| Repair Ability | On failure, only a few columns may be damaged and need replacing | An overturning failure can damage a large wall section, needing near-total reconstruction over several weeks | Reduces maintenance cost and time |
Beyond our standard panel line, we also cast a heavy-duty structural system for sites that need extra height, extra load capacity, or a taller single-panel run.
Multi-panel wall built up in courses between pre-stressed columns.
| Description | Column | Panel |
|---|---|---|
| Height | 2700mm – 4500mm | 3120×1800mm / 3120×2400mm |
| Weight | 100 kg per metre | 1200 kg (6 ft) / 1500 kg (8 ft) |
| Thickness | 227mm × 227mm | 75mm |
| Steel | High-carbon 4mm | 6mm & 12mm TMT |
| Material Grade | M25 / M30 / M40 | M30 / M40 |
| Colour | Grey (Cement Colour) | Grey (Cement Colour) |
A taller single-panel variant, topped with wire fencing.
| Description | Column | Panel |
|---|---|---|
| Height | 2700mm – 4500mm | 3120×900mm |
| Weight | 100 kg per metre | 460 kg |
| Thickness | 227mm × 227mm | 75mm |
| Steel | High-carbon 4mm | High-carbon 4mm |
| Material Grade | M25 / M30 / M40 | M30 / M40 |
| Colour | Grey (Cement Colour) | Grey (Cement Colour) |
| Pre-Stressed Strength | 15.2 kN | 9.3 kN |
Sloped cap fitted along the top of every column to shed rainwater.
| Description | Cap |
|---|---|
| Size | 300×227mm / 227×227mm |
| Grade | M30 |
| Colour | Grey |
10ft cross-pole for mounting wire fencing along the top course.
| Description | Horizontal Pole |
|---|---|
| Size | 3000×150×227mm |
| Grade | M30 |
| Colour | Grey |
| Weight | 200 kg |
| Steel | 4mm |
Every pre-stressed column is proof-tested on our hydraulic tensioning rig before it leaves the yard, confirming it meets its rated pre-stressed strength.

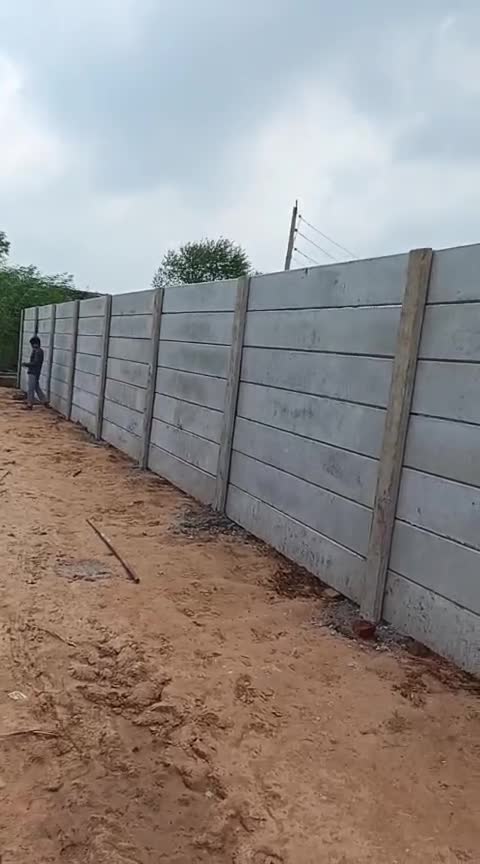

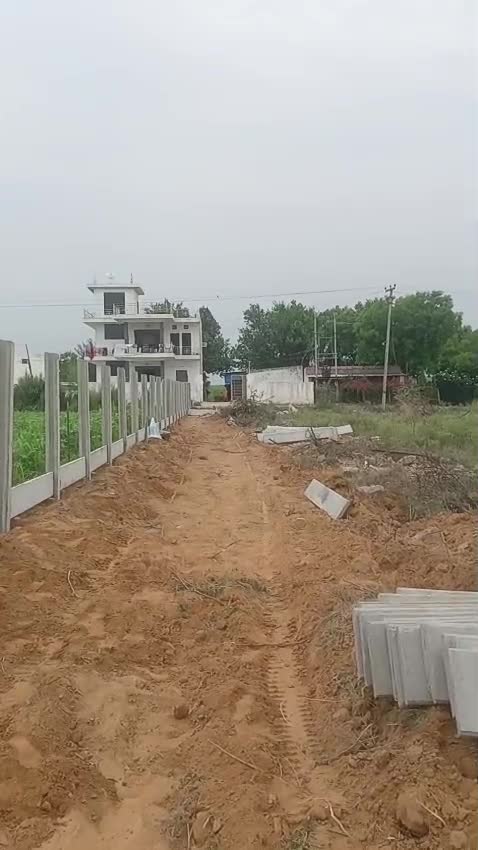

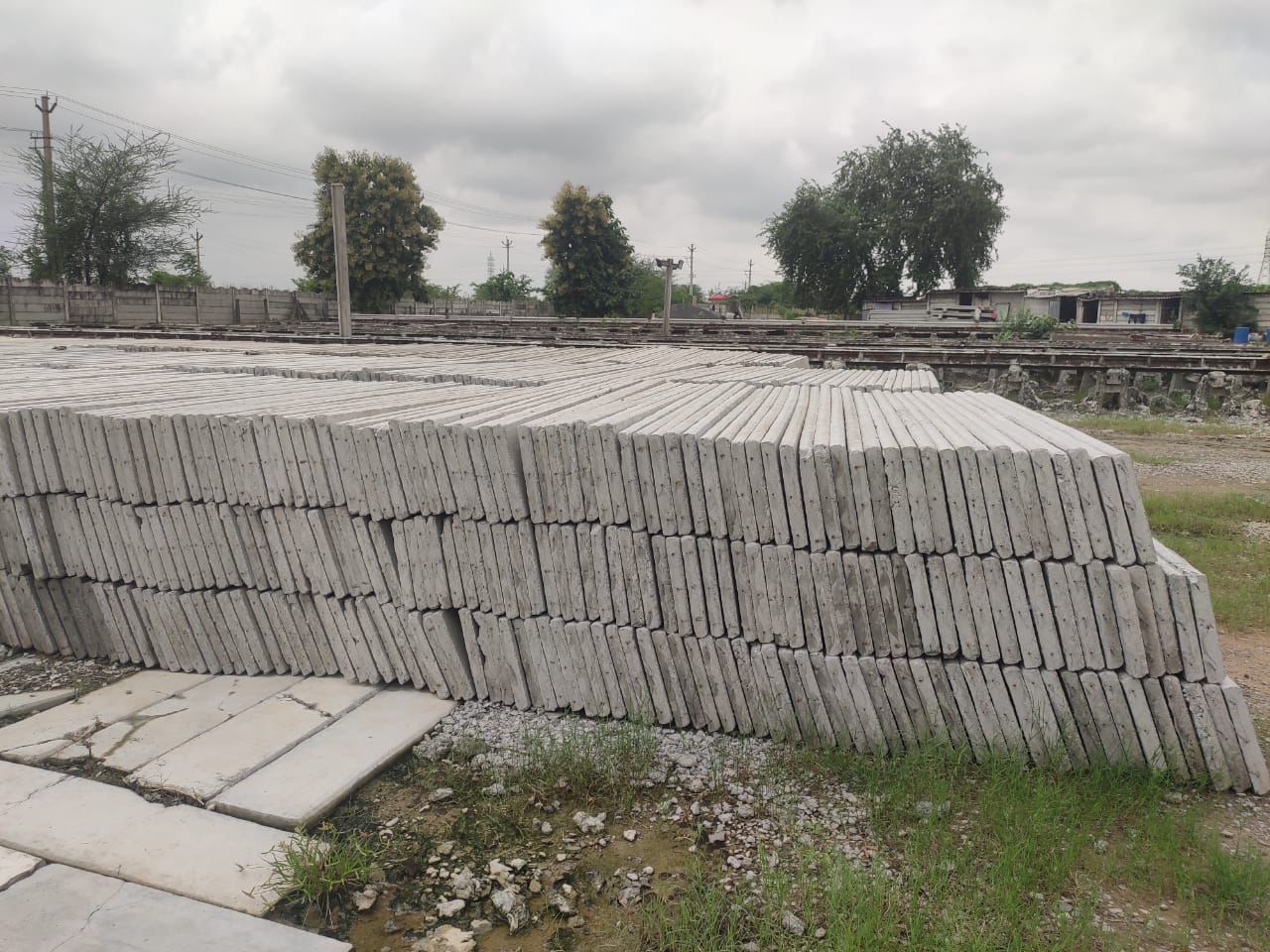

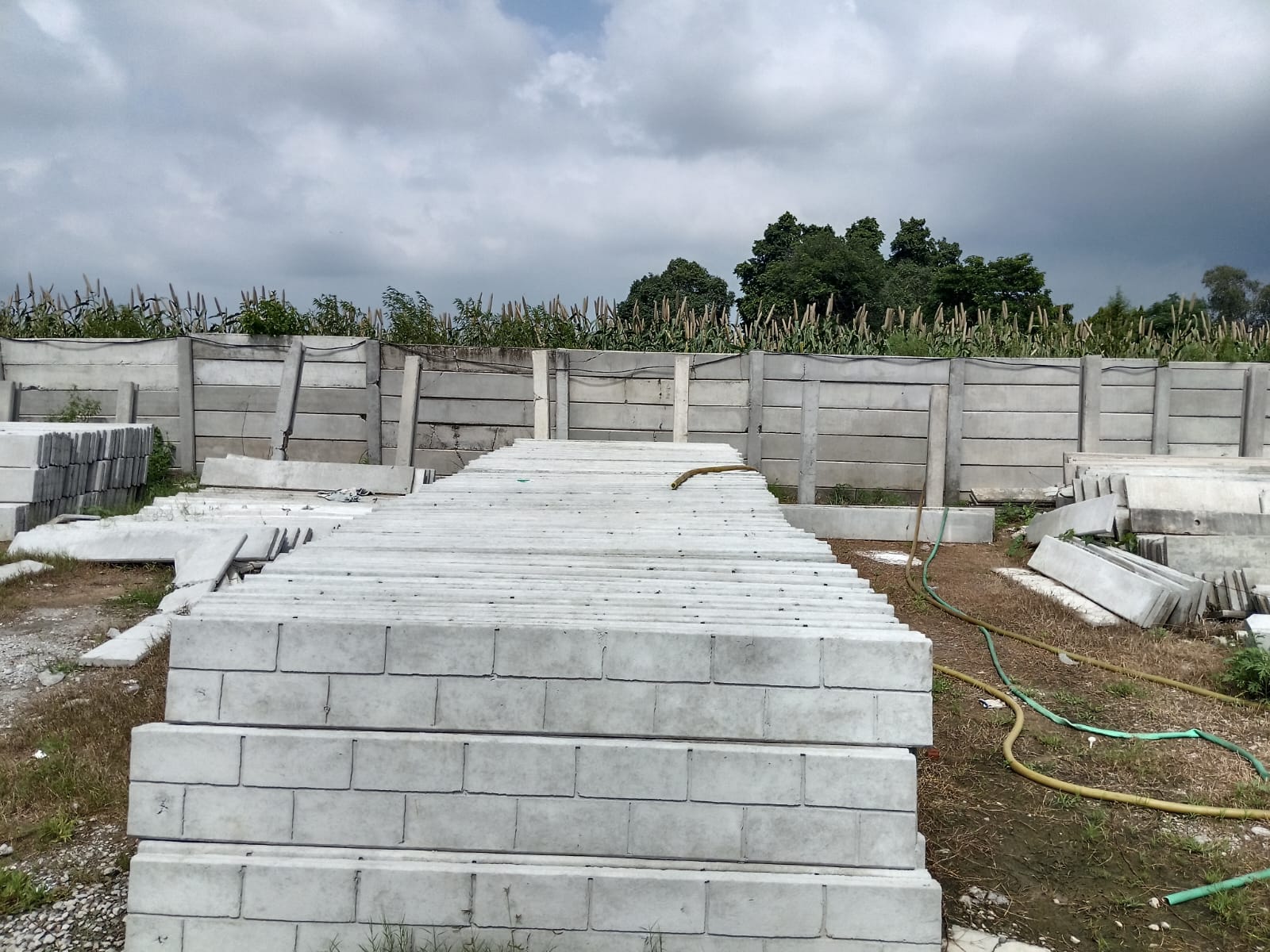

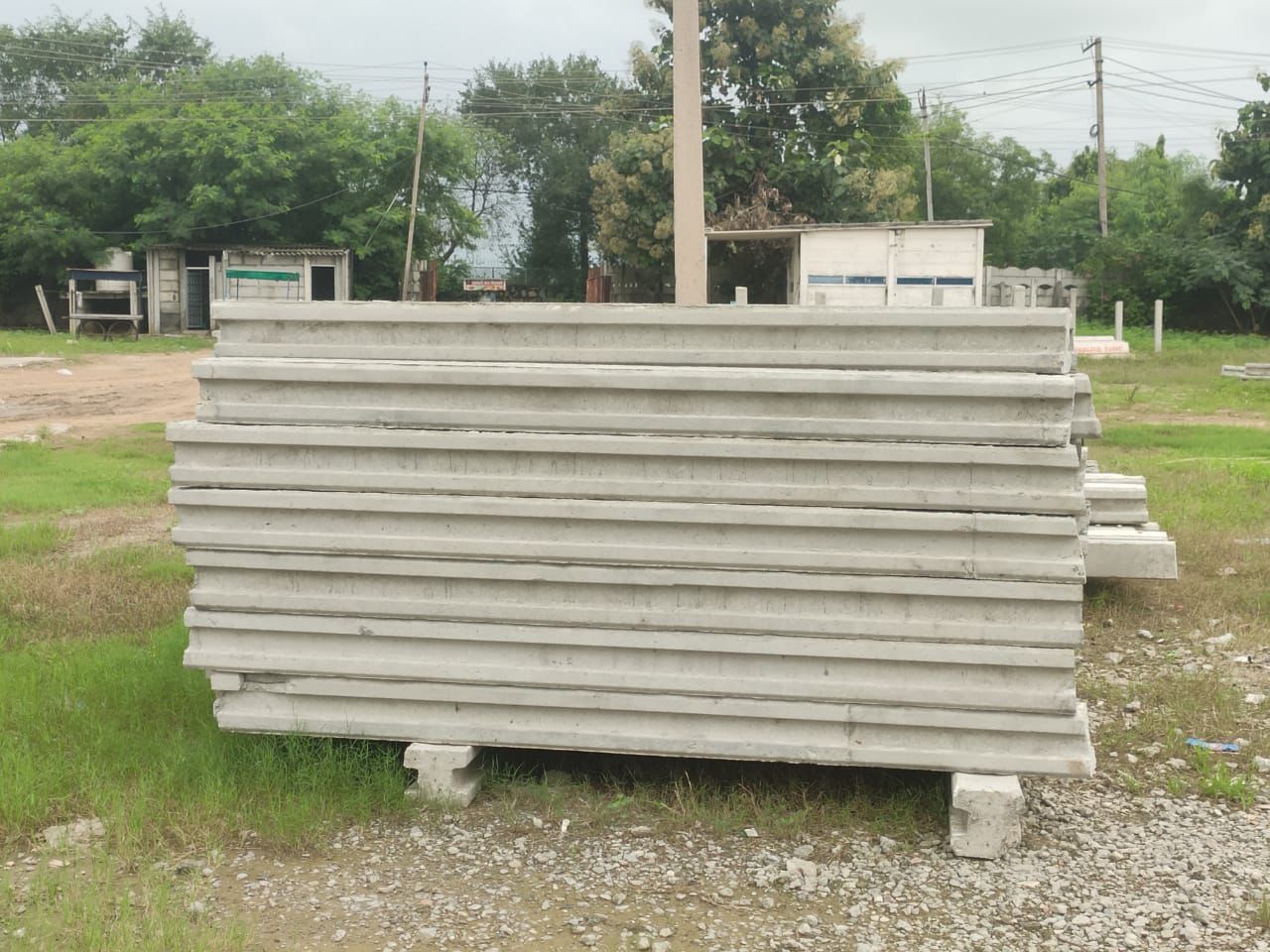

Completed compound walls, factory-yard stock and site installations - browse photos or watch a wall go up.
Share your plot size and requirement - we'll get back with a site visit and a quote.
Khewat No. 446/424/412, Killa No. 71/17/2,
Sohna To Ballabgarh Road, Village Harchandpur,
Gurugram, Haryana – 122103
GSTIN: 06BDLPK0084R1Z0
Visit the casting yard to see finishes in person before you order.
